606045 (606043) Bertazzoni/Omega/Blanco/Baumatic Oven Triple Loop Fan Element 3000W

B606045 Baumatic, La Germania Oven Fan Forced Element 3000W - 606043

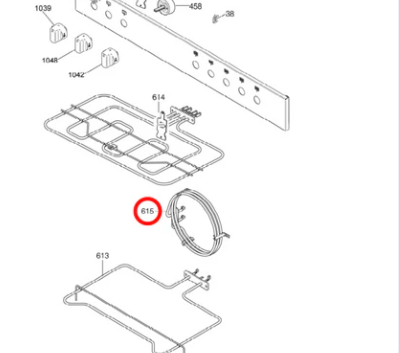

B606045 supersedes 606043, XBER606045, 10485, IM101-02 and is number 615 on the diagram. The diagram is from model BAU95EG.

For the upper heating element (number 614 on the diagram), go to 606095.

For the lower heating element (number 613 on the diagram), go to 606094.

Models this part suits:

LUEP51-90-S, GEF90EG, vef90eg, H95C61X, D95C60W, LUEP03-90-S, LUE03-90-WLP, BAF91EG, BAF92EG, M8060WOKXELE, SC90ELE, C95C61XNG LUE01-90, LUE01-90-SLP, LUE02-90-SLP, LUEP01-90-SNG, LUE02-90-WNG, and possibly more.

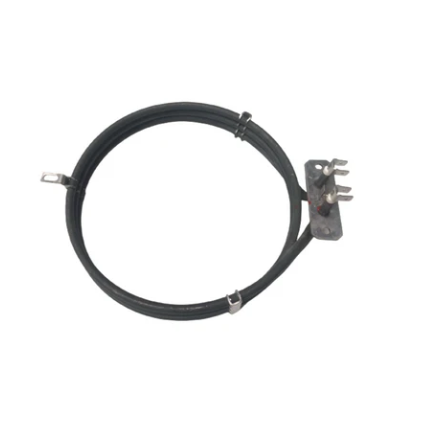

M101-02 Fan Element 3000W

180mm Diameter

Alt: B606045, B606043, 2155405R, 4062308R, 606043, 606045, 10485 ,3130445, IM101-02, GLO101-02, 4062308R IRCA, EG3019, XBER606045,1350R823

Suits:

La Germania: R95C60X, M8060WOKXELE, SC90ELE, C95C61XNG, LUE01-90 LUE01-90-SLP LUE02-90-SLP LUEP01-90-SNG LUE02-90-WNG, LUE02-90-SNGM9060WOKXELE,

LUEP51-90-S, LUE03-90-SNG,

Baumatic: GEF91EG, BAF91EG, BAF92EG, GEF91EG, GEF90EG, H95C61X, D95C60W

Venini: VEF91EG, VEF90EG, VEF91EG

Linea: LIF90EG

Omega: OF991XS, OF991XSA, OF991XP

Blanco: FD906W

Damani: DAF91EG , DAF90EG
